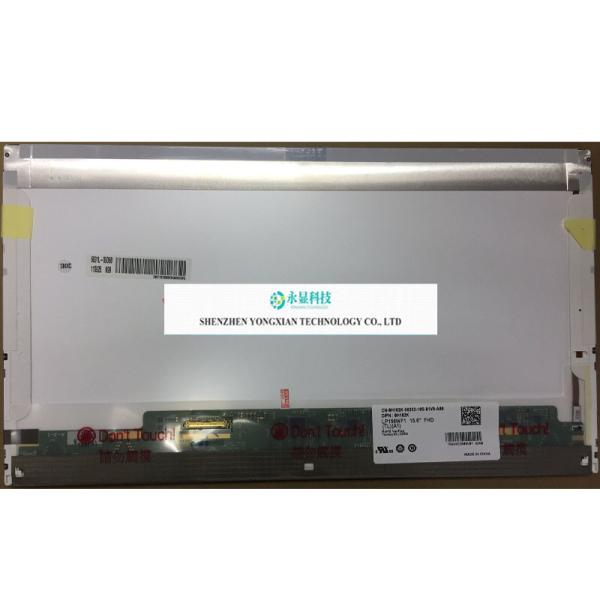

LP156WF1-TLA1 TLB2 fit LTN156HT01 B156HW01 B156HW02 40 pin 15.6 inch 1920x1080

LP156WF1-TLA1 (alias: LP156WF1 (TL) (A1) (Product Code: LGD020A is a 15.6-inch LCD module product launched by LG Display, which adopts a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document Ver1.0 released by LG Display on March 9, 2009, the LP156WF1-TLA1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 × 193.59 (width × height) mm, visible size is 349.8 × 197.1 (width × height) mm, appearance size is 359.3 × 209.5 (width × height) × 5.7 (thickness) mm, surface treatment is mirror (Haze 0%), Hard coating (3H), product net weight 470g (Max.), appearance style is thick screen (PCBA bent, thickness ≥ 5.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LP156WF1-TLA1 adopts LVDS (2 ch, 6-bit) signal interface, with a total of 40 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on August 2, 2023. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, LED driver, inverted terminal, and mirror surface features, this model is recommended for use in laptops.

Packing & Shipping

Trading Process

FAQ

1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.

2.What payment method can I use?
T/T is the best,we aslo accpet Paypal

3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,

and will use third parties delivery services or delivered as clients request.

4.How long is the warranty period?
12 Months

5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
